| Part Name: | Liner Set | Part No.: | 5-87814091-2 |
|---|---|---|---|
| Application: | TFR TFS UBS | Engine Model: | 4JH1 4JH1-TC |
| Brand: | ORIGIN PARDS | Liner Size: | ID=95.4mm , H=181mm |
| Packing: | Engine Set In One Box | Keyword: | 4JH1 4KH1 Engine Liner Set |
| Quality: | High Quality Spare Parts | Piston: | 8-97305585-3 |
| High Light: | 4KH1 Engine Liner Set,5878140912 Engine Liner Set,8973055853 Engine Liner Set |
||
ORIGIN PARDS 4JH1 4KH1 Engine Liner Set 5878140912 For Light Truck And Pickup Piston 8973055853 High Cost Performance
ORIGIN PARDS 4JH1 4KH1 Liner Set For Isuzu Light Truck And Pickup
| Part name | Liner kit ; liner set ; piston set ; piston kit |
| Application | NHR ; NKR ; TFR ; TFS ; UBS |
| Engine model | 4JH1 ; 4JH1-TC |
| Size |
Liner size heigth 181mm Inner diameter 95.4mm Piston pin size 31mm
conrod bushing 31mm
|

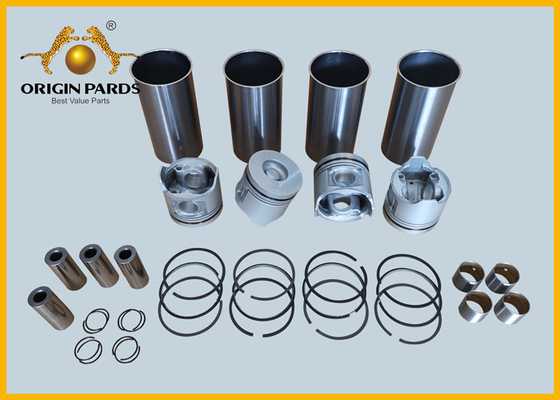

| Packing | 4 Liner set in one box, means one engine set. Include 4 piston , 4 piston ring , 4 connect rod bushing , 4 piston pin , 4 liner , 8 Piston pin snap |
| Feature |
OEM quality piston , provide long use life and high performance driving
Fully cooper bushing attain over 100,000 Km protect
Precision machining of piston rings with good airtightness

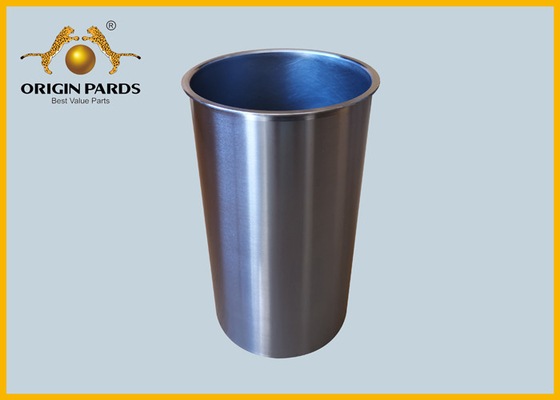

Thin wall liner , chrome painting 3C provide stable performance
Mesh oil circuit on the inner wall of liner, keep piston motion lubrication and stable
|
| Part No. |
5-87814090-0 ; 5-87814090-1 5-87814090-2 ; 5-87814090-3 5-87814091-0 ; 5-87814091-1
5-87814091-2 ; 5-87814091-3
5-87814092-0 ; 5-87814092-1
5-87814092-2 ; 5-87814092-3
5-87814093-0 ; 5-87814093-1
5-87814093-2 ; 5-87814093-3
|
| Replacing Part No. |
5878140900 ; 5878140901 5878140902 ; 5878140903 5878140910 ; 5878140911
5878140912 ; 5878140913
5878140920 ; 5878140921
5878140922 ; 5878140923
5878140930 ; 5878140931
5878140932 ; 5878140933
|
1. In China 4JH1 engine are known as 4KH1 engine and 4K engine, they use different piston number but they actually same. 4JH1 piston 8973055853 and 4KH1 piston 8972400473.
2. ORIGIN PARDS 4JH1 4KH1 liner set put one engine set in packing box, and each liner have individual packing box as well.
3. ORIGIN PARDS liner set provide high performance and safety engine piston kit, comfortable driving experience.
4. Using top ranking liner, piston, piston ring, connect rod bushing. After test in laboratory and real truck, we achive best status.
5. Inner wall of liner have mesh oil circuit, provide stable and lubrication while piston motion.
Piston enchance first piston ring groove protect air tightness and long life use. Top of the piston is anodized to form a high hardness heat resistant layer to increase heat resistance and reduce the heat absorption at the top of the piston. The tin or galvanizing of the piston skirt can avoid the phenomenon of pulling out of the cylinder when the lubrication is bad, and it can also accelerate the grinding effect of the piston and the cylinder.
9 REASONS TO CHOOSE US
ORIGIN PARDS is a famous auto parts brand known worldwide .We keep developing and manufacturing high quality and competitive auto parts base on commercial vehicle parts and industrial engine parts as business core. Now our maunfacture moved to China oriented after a long period of development.
HOW TO CONTACT US
| Name: | Edison Jiang | Sales Assistant |
| E-mail: | dmautoparts03@dm-isuzu.com | dmautoparts01@dm-isuzu.com |
| Phone: | +86 13502240019 | +86 13502240049 |
| Wechat: | +86 13502240019 | - |
| Whatsapp: | +86 13502240019 | - |
Our Service
1. Supply ISUZU genuine parts , ISUZU Bvp parts , OEM parts , high cost performance China manufacture parts .
2. General agent of ORIGIN PARD in China.
3. Thirty years of retail and wholesale experience . The sales group with average of five years experience , can answer any professional question . Equipped with a professional quality inspection team.
4. Running seven stores , manage in commercial vehicle and industrial engine parts.
5. Can offer competitive purchase price to our client , cause we attain developed distribution channel over the world.
