Product Details:
Payment & Shipping Terms:
|
| Part Name: | Clutch Cover | Part No.: | 8-97351833-0 |
|---|---|---|---|
| Engine Model: | 4JH1 4JJ1 4HF1 4HG1 | Application: | NKR NPR NPS |
| Brand: | ORIGIN PARDS | Material: | Steel Iron |
| Color: | Black Sliver Yellow | Size: | 300mm |
| Structure: | Pull Tpye | Funtion: | Separation And Compaction |
| Highlight: | isuzu truck accessories,clutch driven plate |
||

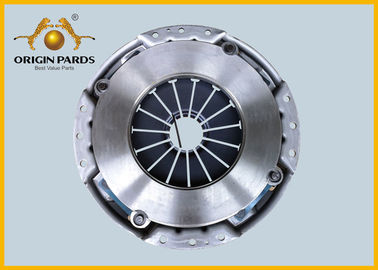

ISUZU 300mm Clutch Cover 8973518330 8973107960 Pull Type Diaphragm Spring Clutch Plate
High Performance Clutch Plate Seperation And Compaction Comfortable
| Part name |
PLATE ASM; PRESSURE, CLU |
| Transmission model |
MXA5T ; MXA5S ; MYY5T MYY6S ; MYY6P ; MSB5M |
| Size | 300*190*350 |
| Friction surface size | 300 mm |
| Lever arm |
Diaphragm spring |
| Weight | 11KG |
| Packing |
ORIGIN PARDS packing |
| System | Clutch |
| Funtion | Separation and compaction |
| Quantity | 1 pieces in a truck |
| Feature |
High cost preformance Change speed comfortable Heat treatment long life use |
| Part No.- |
8-97310796-0 ; 5-87610050-0 5-87610079-0 ; 8-97031757-0 8-97031757-1 ; 8-97031757-2 8-94363454-0 ; 8-94363454-1 8-97169534-0 ; 8-97351833-0 5-87610091-0 ; 8-98040093-0 8-97259693-0 |
| Replacing Part No. |
8973107960 ; 5876100500 5876100790 ; 8970317570 8970317571 ; 8970317572 8943634540 ; 8943634541 8971695340 ; 8973518330 5876100910 ; 8980400930 8972596930 |
1. According to the drawing of original factory, we produce the products of the clutch disc and clutch plate and ensure the smooth completion of assembling work.
2. The clutch plate adopts high standard parts.For example,the cover is made of Baogang pickling plate ,the plate use HT250 cast iron material and the spring of friction plate use Oil cold quenching process. So that the clutch plate we produced is characterized by its separation smooth, uniform strength
3. There are friction discs on the clutch pressure plate, just like brake discs on wheels, which are made of asbestos and copper wire. The friction discs on the pressure plate also have the lowest allowable thickness. After a long driving distance, the friction discs on the pressure plate should be replaced.
