Product Details:
Payment & Shipping Terms:
|
| Part Name: | Hand Brake Shoe | Part No.: | 8-97020250-2 |
|---|---|---|---|
| Engine Model: | NKR NPR | Application: | 4HF1 4HG1 |
| Gearbox: | MYY5T MYY6S | Lining Material: | Semi-Metallic |
| Unit: | 2 Shoes/set For A Truck | Width Size: | 46mm |
| Oem No.: | FN4443 | Quality: | High Quality |

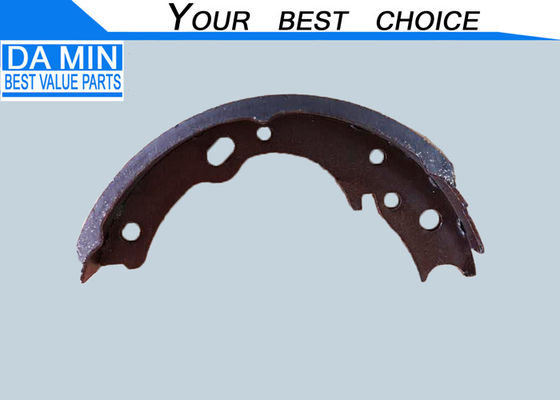

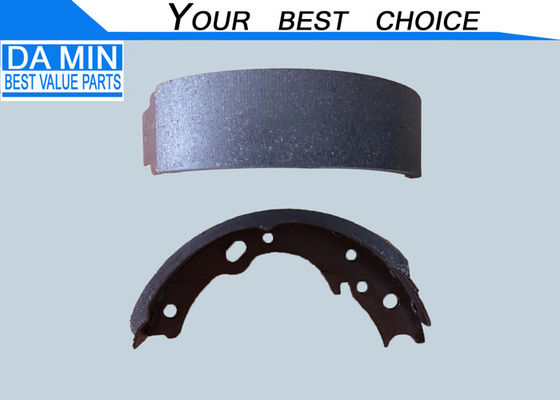

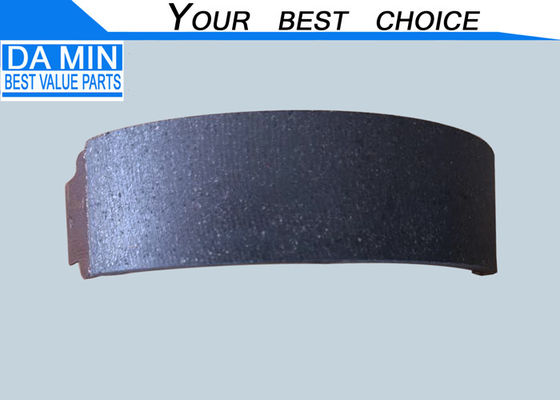

ISUZU NPR NKR brake shoes
| Part name |
Handbrake shoe |
| Engine Model |
4HF1 ; 4HG1 |
| Truck Model |
MYY5T ; MYY6S |
| Application |
NKR ; NPR ; NQR |
| Material | Shoe use steel, lining use Semi-Metallic |
| Function |
Preventing Vehicle Rollaway, Backup Emergency Braking |
| Part number |
8943154760 ; 8970202500 8970202501 ; 8970202502 FN4443 |
| Replace part number |
8-94315476-0 ; 8-97020250-0 8-97020250-1 ; 8-97020250-2 FN4443 |
Key Functions of Truck Parking Brake Linings:
Preventing Vehicle Rollaway
The primary role is to lock the rear wheels when the parking brake is engaged, preventing unintended movement.
Essential for safety when parked on hills or during loading/unloading.
Backup Emergency Braking
If the main service brakes fail, the parking brake can serve as a secondary braking system to slow or stop the truck.
Reducing Wear on Service Brakes
By holding the vehicle in place independently, parking brake linings reduce strain on the primary brake system, extending its lifespan.
Stability During Stationary Operations
Important for trucks with auxiliary equipment (e.g., cranes, mixers) to maintain stability when the engine is running but the vehicle isn’t moving.
Compliance with Safety Regulations
Heavy-duty trucks must meet DOT/FMVSS standards, requiring a reliable parking brake system for roadworthiness.
How Truck Parking Brake Linings Work:
When the driver activates the handbrake lever (or pedal), a cable or hydraulic mechanism presses the brake linings against the drum or disc (depending on design).
Friction between the lining and braking surface generates holding force.
High-quality linings maintain grip even under heat, moisture, or heavy loads.
