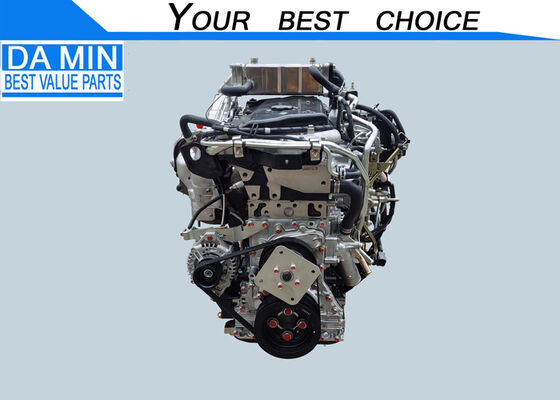

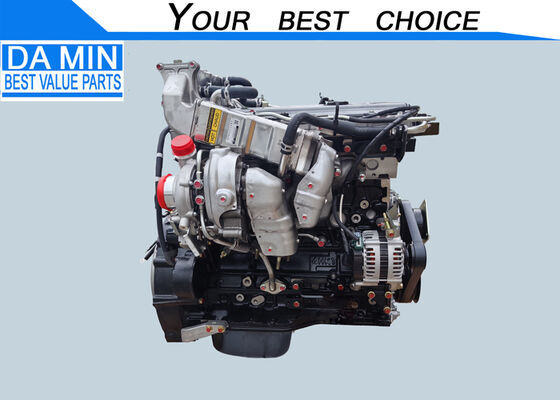

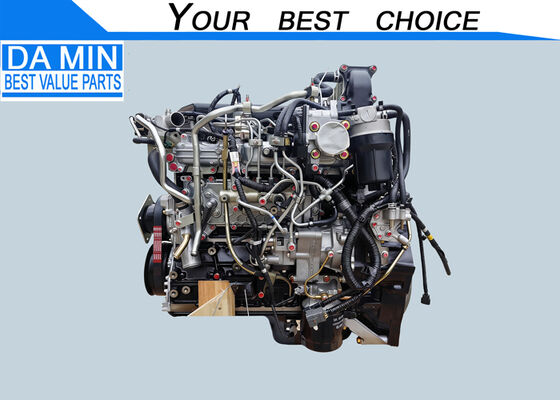

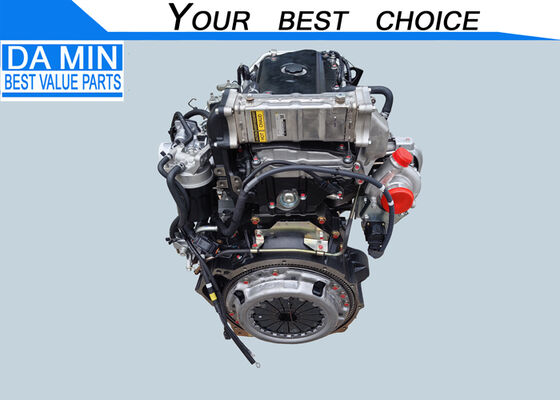

700P NPR NQR 4HK1 Engine Assembly Euro IV Emission Standard Displacement 5.2L Isuzu Inline 4-Cylinder Turbocharged Diesel Engine

 Isuzu 4HK1 Complete Engine Assembly Euro IV


The Isuzu 4HK1 is a 5.2L inline 4-cylinder turbocharged diesel engine, specially designed for medium and heavy-duty commercial vehicles. It is widely compatible with Isuzu FTR, Qingling 700P and other mainstream trucks, with core advantages of strong low-end torque, high efficiency and energy saving, reliability and durability, and emission compliance, making it a classic power solution for logistics and transportation.

Core Technical Features

- High-Pressure Common Rail System: Adopting Denso (Japan) electronic control high-pressure common rail technology, the injection pressure reaches over 1800bar, realizing multi-stage precise injection. The ECU optimizes fuel injection volume and timing in real time, reducing fuel consumption, emissions and improving power response.

- Efficient Turbocharging Technology: Equipped with turbocharger and intercooler (VGS variable cross-section turbocharger for some versions), it can output peak torque at 1500rpm, with 15% improvement in low-speed performance. The intercooler reduces intake temperature, ensures stable operation under high load.

- Durable Design: Reinforced cast iron cylinder block, forged steel crankshaft, key components pass Isuzu's strict durability test, with a service life of over 1 million kilometers. Timing chain drive, maintenance-free for life, reducing operating costs.

- Environmentally Friendly Emission: Complies with Euro IV/V/VI and China National V/VI emission standards. The National VI version adopts DPF+SCR+DOC after-treatment system, greatly reducing NOx and particulate emissions, and low noise (3-5dB lower than similar models).

Core Advantages

- Powerful Performance: Peak torque at 1500rpm, strong starting and climbing ability, no frequent gear shifting when loading heavily. Power reserve is sufficient, adapting to high-speed cruising and complex road conditions, with a maximum speed of over 120km/h.

- Fuel Economy: Precise common rail injection + variable vortex technology, comprehensive fuel consumption is 5-8% lower than similar models. Low idle speed (600rpm) design saves fuel in urban working conditions.

- High Reliability: With Isuzu's century-old diesel engine technology, the average mean time between failures (MTBF) exceeds 500,000 kilometers. It adapts to harsh working conditions (-30℃ to +50℃) and runs stably.

- Easy Maintenance: Long maintenance interval (500 hours / 20,000km), reducing the number of maintenance times. Modular design of key components, convenient maintenance and low maintenance cost (15-20% lower than similar products).

- Wide Adaptability: Suitable for 10-18 ton medium and heavy-duty trucks, refrigerated trucks, fire trucks, sanitation vehicles, etc. Supports multiple gearbox matching and optional dual-power mode (economy/power) to meet different operating needs.

E-commerce Keywords & Application

Keywords: Isuzu 4HK1 Engine, 5.2L Turbo Diesel Engine, Heavy-duty Truck Engine, Euro IV/V/VI Emission, High-pressure Common Rail, Low-speed High Torque, Fuel-efficient Durable Engine

Application: Ideal for long-distance logistics, urban distribution, special operations (fire, sanitation), cross-border transportation (complies with global emission regulations).
