Guangzhou Damin Auto Parts Trade Co., Ltd.
|
Product Details:
Payment & Shipping Terms:
|
| Part Name: | Cylinder Block | Part No.: | 1002011-PA11 |
|---|---|---|---|
| Engine Model: | 4JB1 4JB1T 4JB1T-IV | Application: | NKR 100P |
| Brand: | Qingling | Material: | High-strength Gray Cast Iron |
| Bore Size: | 93mm | Stroke Size: | 102mm |
| Type: | Electric Fuel Inject Engine | Keyword: | Isuzu 4JB1 Engine Block |

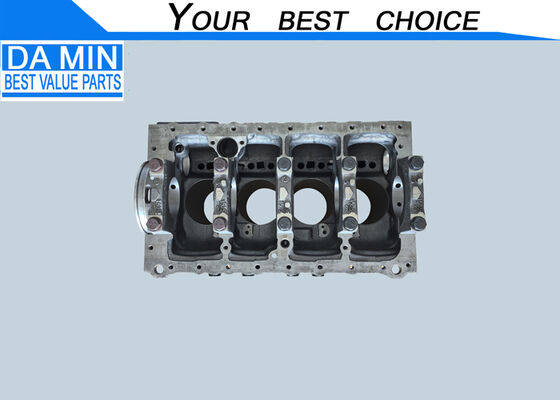

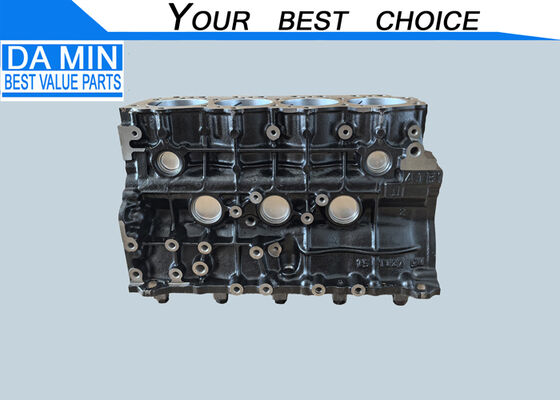

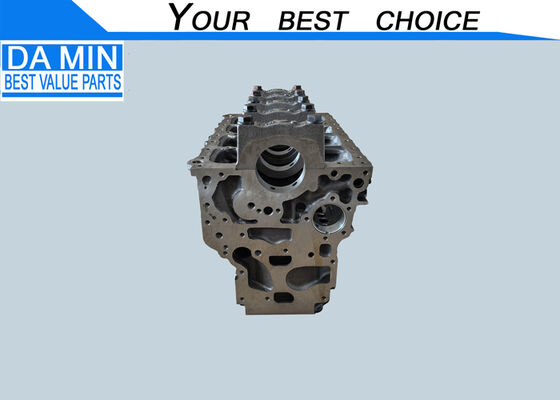

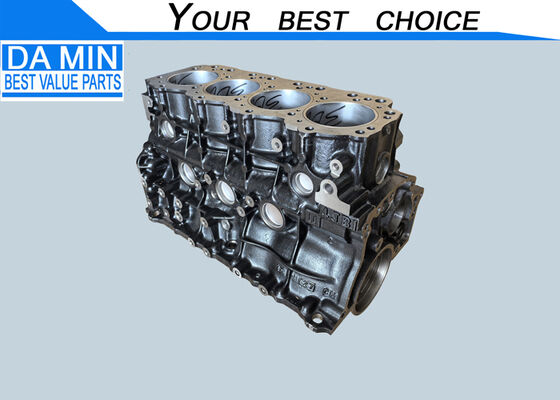

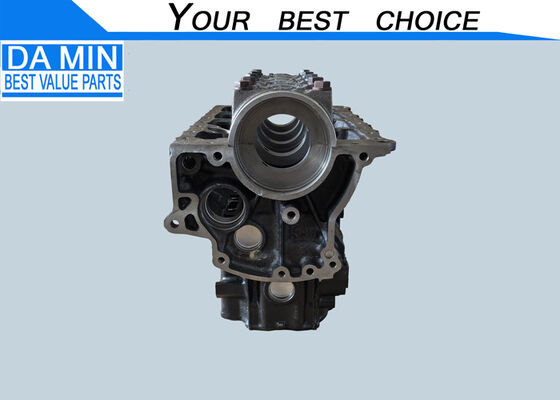

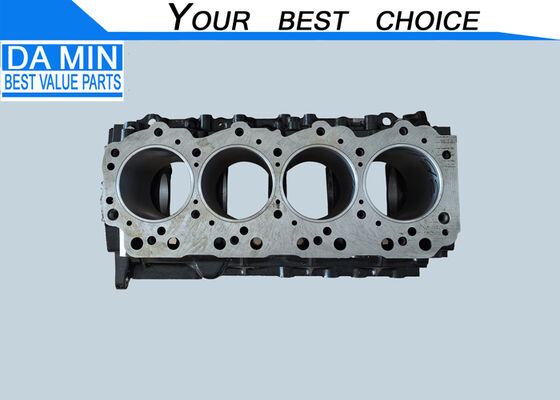

ISUZU 4JB1 Cylinder Block 1002011-PA11 For Qingling IV 100P
| Part name | Cylinder block |
| Application | NKR ; 100P |
| Engine Model | 4JB1 ; 4JB1T ; 4JB1T IV |
| Size | Displacement 2.771L (2771cc), Bore × Stroke: 93mm × 102mm |
| Feature | Symmetrical high-rigidity cylinder block + integrated ladder frame bearing cap, enhancing the crankshaft support rigidity. Optimized dual-layer water jacket and main oil gallery design to improve cooling and lubrication efficiency. Precision honing of cylinder bores with low surface roughness, reducing friction loss of the piston. |
| Function | Adopts high-strength gray cast iron with an integrated linerless design, and the cylinder bore inner wall is strengthened by high-frequency quenching. |
| Part no. | 1002011-PA11 |
| Replace part no. | 1002011PA11 |
Other Important Technical Specifications
Intake Method: Turbocharged intercooled
Valve Mechanism: SOHC, 2 valves per cylinder
Idle Speed: 750±25rpm
Maximum Speed: 4000±100rpm
Minimum Fuel Consumption Rate at Full Load: ≤210g/kW·h
Engine Dimensions: 767×619×787mm
Engine Net Weight: Approximately 240kg
Lubrication System: Pressure lubrication, rotor-type oil pump
Starting Method: Electric start
HOW TO CONTACT US
| Name: | Edison Jiang | Sales Assistant |
| E-mail: | dmautoparts03@dm-isuzu.com | dmautoparts01@dm-isuzu.com |
| Phone: | +86 13502240019 | +86 13502240049 |
| Wechat: | +86 13502240019 | - |
| Whatsapp: | +86 13502240019 | - |
Our Service
1. Supply ISUZU genuine parts , ISUZU Bvp parts , OEM parts , high cost performance China manufacture parts .
2. General agent of ORIGIN PARD in China.
3. Thirty years of retail and wholesale experience . The sales group with average of five years experience , can answer any professional question . Equipped with a professional quality inspection team.
4. Running seven stores , manage in commercial vehicle and industrial engine parts.
5. Can offer competitive purchase price to our client , cause we attain developed distribution channel over the world.
FAQ
1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2.Q:Are you manufacturer or trading company?
A: We are both factory and trading company , we combination for more than 10 years. We have invested in 3 factories.
3.Q: How about the delivery time of the goods?
A: For testing sample, which it depends on the storage.
For bulk production, the delivery time is about 15-30 days based on order situation.
4.Q.:Can you produce according to the samples?
A: Clients’ sample is welcome. We are able to produce the specific products according to your sample.
If you do not find the product you need, tell us detailed information, we have the ability to design and manufacture as requested.
5.Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
